The TP-Link VIGI NVR1016H is a powerful 16-channel network video recorder built for reliable, professional-grade video surveillance in homes, offices, shops, warehouses, and multi-site security deployments. Designed to work seamlessly with TP-Link VIGI cameras and other ONVIF-compatible IP cameras, it delivers smooth real-time monitoring, intelligent playback, and secure local storage.

Supporting up to 8MP resolution, the NVR1016H ensures every detail is captured with clarity across all 16 channels. Advanced H.265+ video compression significantly reduces storage usage and network bandwidth while maintaining crystal-clear image quality—helping lower long-term storage and operational costs.

With support for up to 10TB SATA hard drive storage, the VIGI NVR1016H enables 24/7 continuous recording, motion-based recording, and event-triggered alerts. Intelligent search tools allow you to quickly locate footage by date, event type, or tag, while variable playback speeds help speed up investigations.

The dedicated VIGI mobile app and web interface provide secure remote access from anywhere, allowing live view, playback, and system management on both Android and iOS devices. Two-way audio support further enhances real-time communication and monitoring flexibility.

 Key Features

• 16-Channel IP Camera Support (Up to 8MP per channel)
• H.265+ Video Compression for reduced storage and bandwidth usage
• Up to 10TB Local Storage (1× SATA HDD, not included)
• 4K HDMI Output with simultaneous HDMI & VGA display
• Real-Time Live View & Smart Playback
• ONVIF Compatibility for multi-brand camera integration
• Remote Monitoring via VIGI App & Web Browser
• Two-Way Audio Support
• Advanced Motion & AI-Based Event Detection

 Video & Audio Specifications

• IP Video Input: 16-Channel
• Max Incoming Bandwidth: 80 Mbps
• Max Outgoing Bandwidth: 60 Mbps
• HDMI Output:
• Up to 3840 × 2160 @30Hz
• 1920 × 1080 @60Hz
• VGA Output: Up to 1920 × 1080 @60Hz
• Display Modes: 1 / 4 / 6 / 8 / 9 / 16 Split View
• Audio Compression: G.711A / G.711U / G.726

Recording & Decoding

• Video Compression: H.265+, H.265, H.264+, H.264
• Recording Resolution:
• 8MP / 5MP / 4MP / 3MP / 1080p / 720p
• Synchronous Playback: Up to 16 Channels
• Playback Functions:
• Fast Forward / Rewind
• Frame-by-Frame
• Digital Zoom
• Clip Export
• Lock Recording

Smart Alarm & Detection

• Motion Detection
• Video Tampering
• Line Crossing
• Intrusion Detection
• Human & Vehicle Detection
• Region Entering / Exiting
• Video Loss & Disk Errors
• Alarm Actions: Recording, Buzzer, Logs

Network & Connectivity

• Network Interface: 1× RJ-45 (10/100 Mbps)
• Protocols: TCP/IP, DHCP, DNS, NTP, UPnP
• Mobile Access: Android & iOS
• Web Browsers: Chrome, Firefox, Edge
• Interoperability: ONVIF, CGI

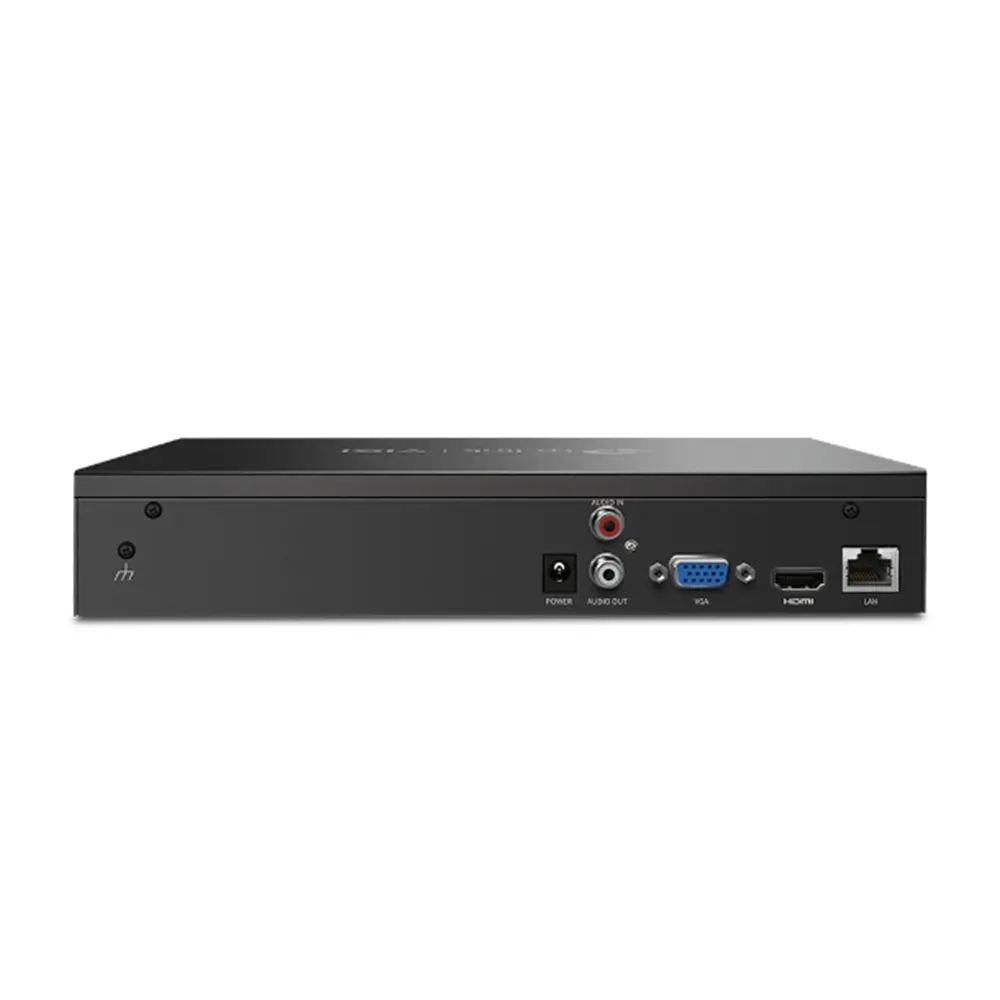

Ports & Interfaces

• 1× HDMI
• 1× VGA
• 2× USB 2.0
• 1× Audio In / 1× Audio Out
• 1× SATA Interface (Up to 10TB)
• DC Power Input

General Specifications

• Power Supply: 12V DC / 1.5A
• Power Consumption:
• 4.25W (without HDD)
• 13.1W (with HDD)
• Dimensions: 246.2 × 148.2 × 45 mm
• Net Weight: 0.6 kg
• Operating Temperature: -10°C to 55°C

What’s in the Box

• TP-Link VIGI NVR1016H Network Video Recorder
• Power Adapter
• HDD Screws
• USB Mouse
• Quick Installation Guide
