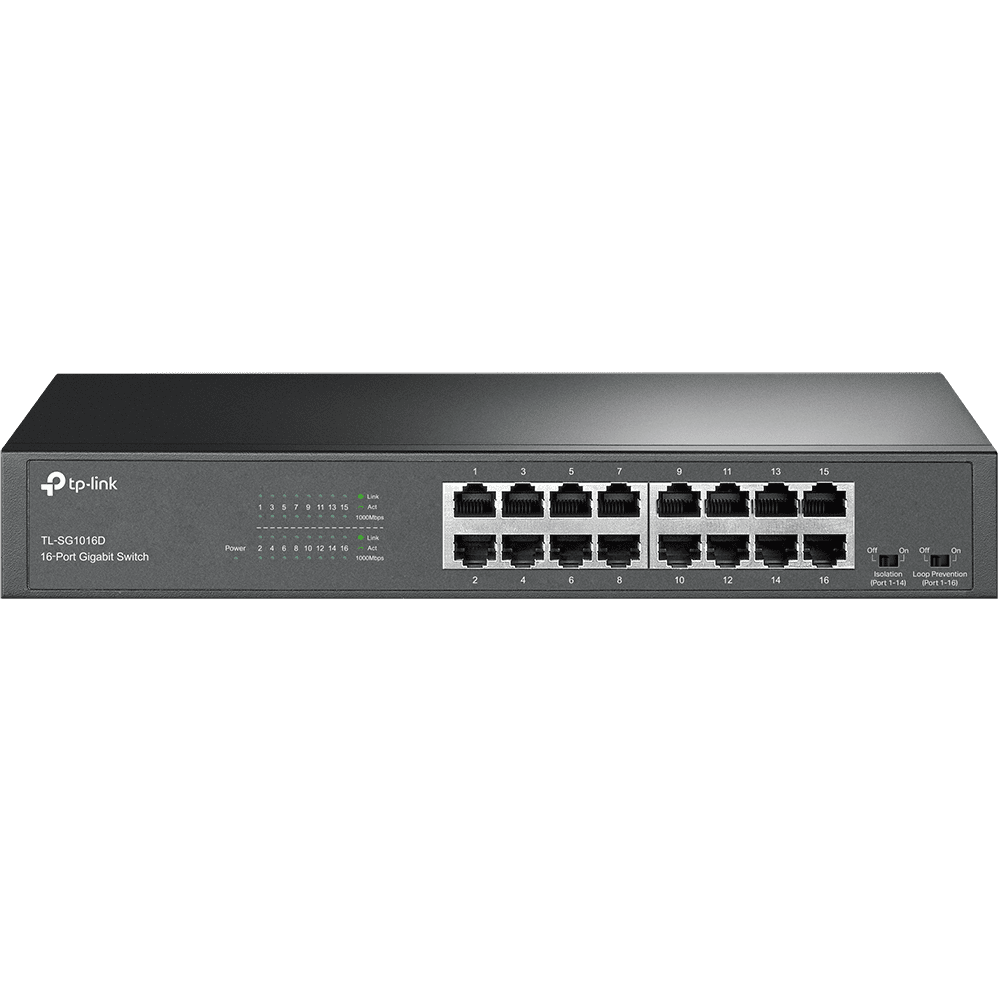

The TP-Link TL-SG1016D V12 is a reliable and high-performance 16-port Gigabit Ethernet switch designed for small offices, businesses, CCTV networks, schools, and enterprise environments that require fast and stable wired networking.

Equipped with 16 auto-negotiation 10/100/1000 Mbps ports, this switch delivers ultra-fast data transfer, smooth file sharing, and seamless video streaming. Its plug-and-play design allows instant deployment without configuration, making it ideal for both IT professionals and everyday users.

Advanced features such as Isolation Mode (Ports 1–14) help improve network security by preventing unwanted communication between connected devices, while Loop Prevention (Ports 1–16) protects your network from broadcast storms caused by wiring loops. With Auto MDI/MDIX, MAC address self-learning, and store-and-forward transmission, the TL-SG1016D ensures stable and efficient data handling at all times.

Built with energy-efficient Green Ethernet technology, this fanless switch automatically adjusts power consumption based on link status and cable length—reducing energy usage without compromising performance. Its desktop and rackmount compatibility provides flexible installation for any network setup.

Key Features

• 16 × Gigabit Ethernet Ports (10/100/1000 Mbps)
• 32Gbps Switching Capacity for high-speed data throughput
• Isolation Mode (Ports 1–14) for improved network security
• Loop Prevention (Ports 1–16) to avoid network disruption
• Plug & Play – No Configuration Required
• Auto Negotiation & Auto MDI/MDIX
• Fanless, Silent Operation
• Energy-Efficient Green Ethernet Technology
• Desktop or Rackmount Installation

Performance Specifications

• Switching Capacity: 32 Gbps
• Packet Forwarding Rate: 23.8 Mpps
• MAC Address Table: 8K
• Jumbo Frame Support: 10 KB
• Transmission Method: Store-and-Forward

Hardware & Interfaces

• Ports:
• 16 × 10/100/1000 Mbps RJ45 (Auto Negotiation / Auto MDI-MDIX)
• Standards & Protocols:
• IEEE 802.3i / 802.3u / 802.3ab / 802.3x
• Network Media:
• 10BASE-T: Cat 3/4/5 (≤100m)
• 100BASE-TX / 1000BASE-T: Cat 5/5e or higher (≤100m)

Power & Physical Details

• Power Supply: 100–240V AC, 50/60Hz
• Max Power Consumption: 10.68W
• Max Heat Dissipation: 36.31 BTU/h
• Cooling: Fanless (silent operation)
• Dimensions: 294 × 140 × 44 mm

 Environmental & Compliance

• Certifications: FCC, CE, RoHS
• Operating Temperature: 0°C – 40°C
• Storage Temperature: -40°C – 70°C
• Operating Humidity: 10% – 90% (non-condensing)

What’s in the Box

• TP-Link TL-SG1016D V12 16-Port Gigabit Switch
• Power Cord
• Rackmount Kits
• Rubber Feet
• Installation Guide
