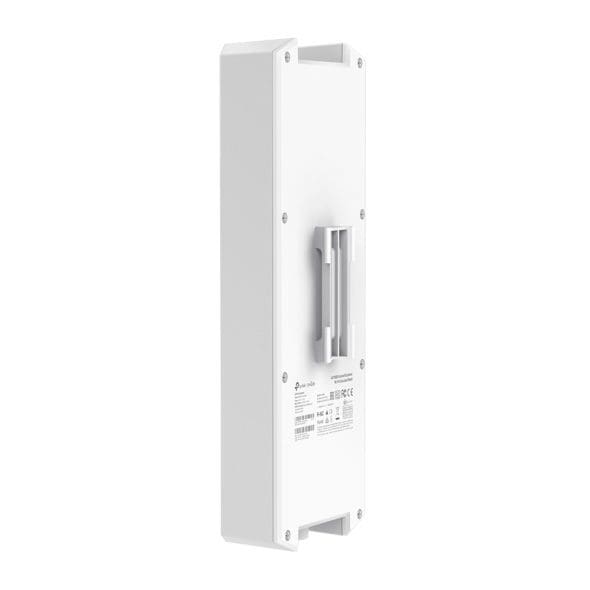

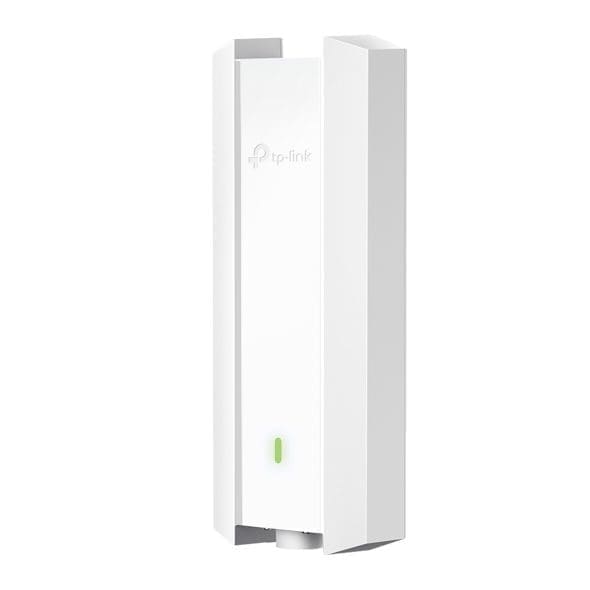

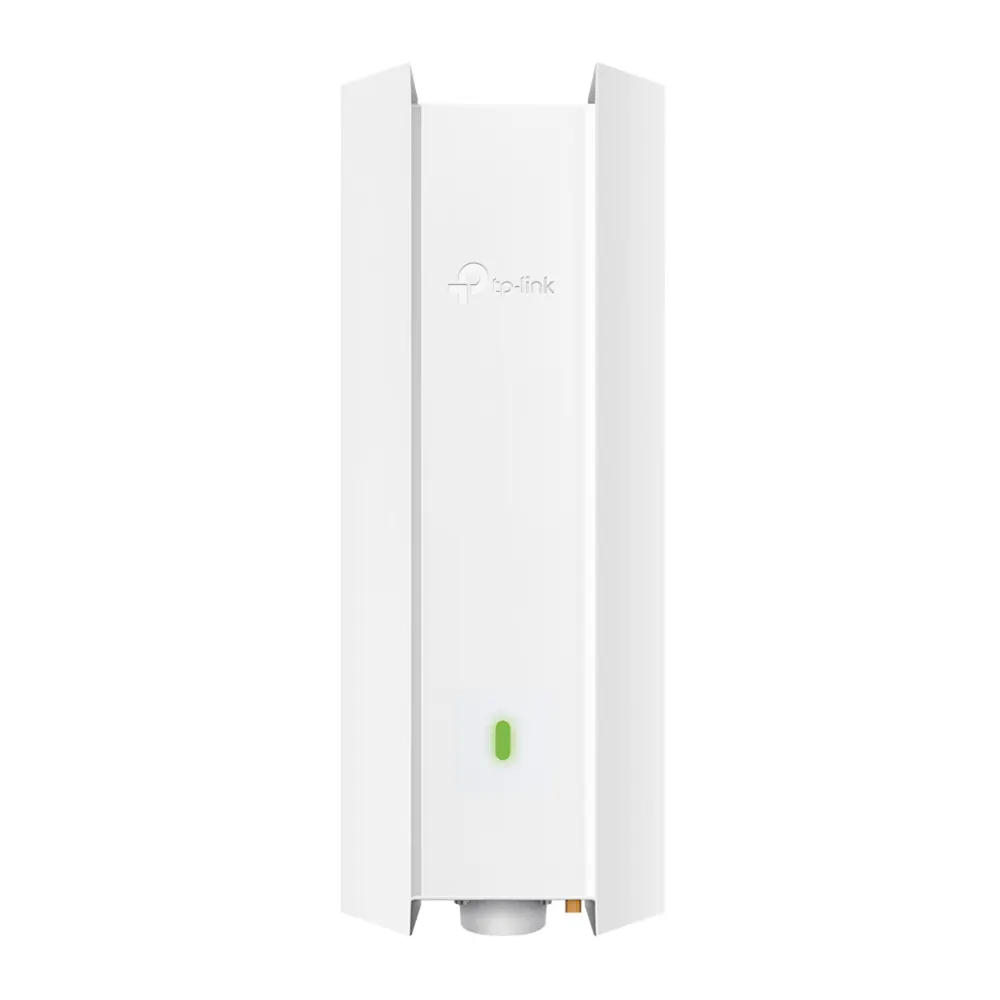

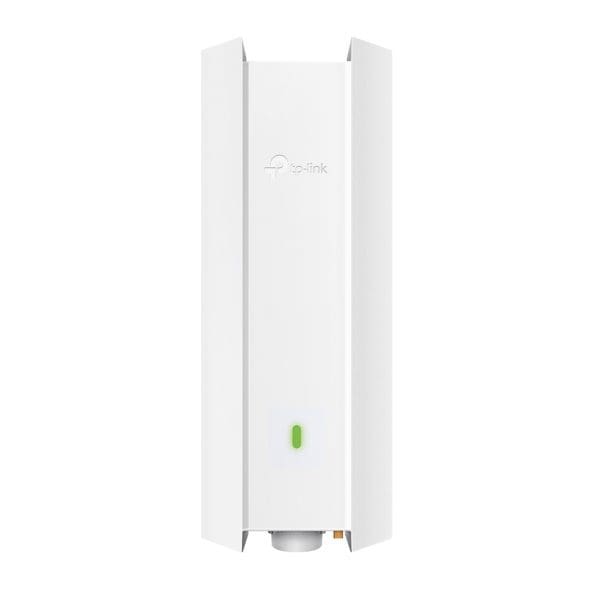

The TP-Link EAP610-Outdoor is a high-performance AX1800 Wi-Fi 6 indoor/outdoor access point engineered for large outdoor areas, campuses, hotels, warehouses, schools, and high-density environments that demand fast, stable, and scalable wireless coverage.

Powered by the latest Wi-Fi 6 (802.11ax) technology, the EAP610-Outdoor delivers combined wireless speeds of up to 1.8 Gbps, ensuring smoother streaming, faster downloads, and lower latency even when multiple devices are connected simultaneously. Advanced OFDMA and MU-MIMO technologies significantly improve network efficiency by allowing more clients to transmit data at the same time.

Designed for harsh environments, the access point features a rugged IP68 weatherproof enclosure, high-power amplifiers, and professional-grade antennas for extended long-range coverage in both indoor and outdoor deployments. With Omada Mesh and Seamless Roaming, users enjoy uninterrupted connectivity while moving across large properties.

The EAP610-Outdoor integrates seamlessly with TP-Link Omada SDN, enabling centralized cloud management, remote monitoring, zero-touch provisioning, and simplified multi-site network control through the Omada app or controller.

 Key Features

• AX1800 Wi-Fi 6 Dual-Band Performance (Up to 1.8 Gbps)
• OFDMA & MU-MIMO for higher capacity and lower latency
• IP68 Weatherproof Design for outdoor and harsh environments
• Long-Range Coverage with high-power amplifiers & antennas
• Omada Mesh & Seamless Roaming for uninterrupted connectivity
• Centralized Cloud Management via Omada SDN
• Supports 802.3at PoE & Passive PoE
• Ideal for Outdoor, Campus & Enterprise Networks

Wireless Specifications

• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency Bands: 2.4 GHz & 5 GHz
• Max Wireless Speed:
• Wi-Fi 6 (802.11ax): Up to 1201 Mbps (5 GHz)
• 802.11ac: Up to 867 Mbps
• 802.11n: Up to 300 Mbps
• Concurrent Clients: 250+
• Multiple SSIDs: Up to 16 (8 per band)

 Wireless Security & Optimization

• WPA / WPA2 / WPA3 (Personal & Enterprise)
• Captive Portal Authentication
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Authentication
• Band Steering, Airtime Fairness, Beamforming
• Load Balancing & Rate Limiting

 Hardware & Power

• Ethernet Interface:

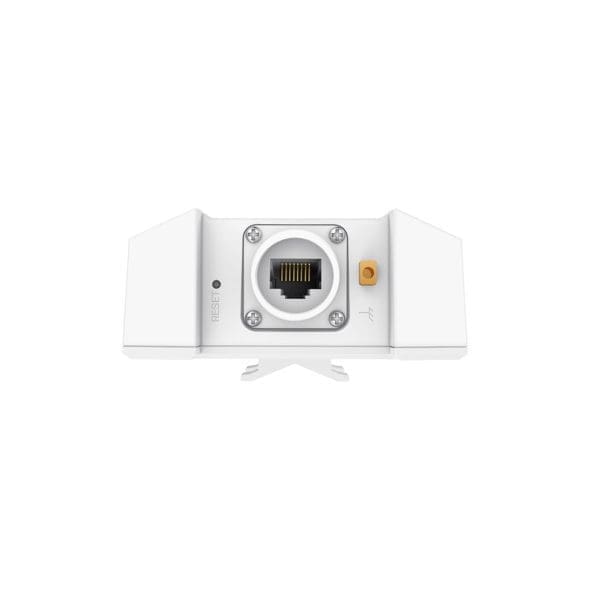

• 1 × Gigabit RJ-45 (Supports 802.3at PoE & Passive PoE)
• Power Supply:
• 802.3at PoE
• 48V Passive PoE (Adapter included – indoor use only)
• Max Power Consumption:
• EU: 12.5W
• US: 14.7W

Physical & Environmental

• Antenna:
• 2.4 GHz: 2 × 4 dBi
• 5 GHz: 2 × 5 dBi
• Weatherproof Rating: IP68
• Mounting: Pole or Wall (kits included)
• Dimensions: 280.4 × 106.5 × 56.8 mm (without antenna)
• Operating Temperature: -30°C to 70°C

 What’s in the Box

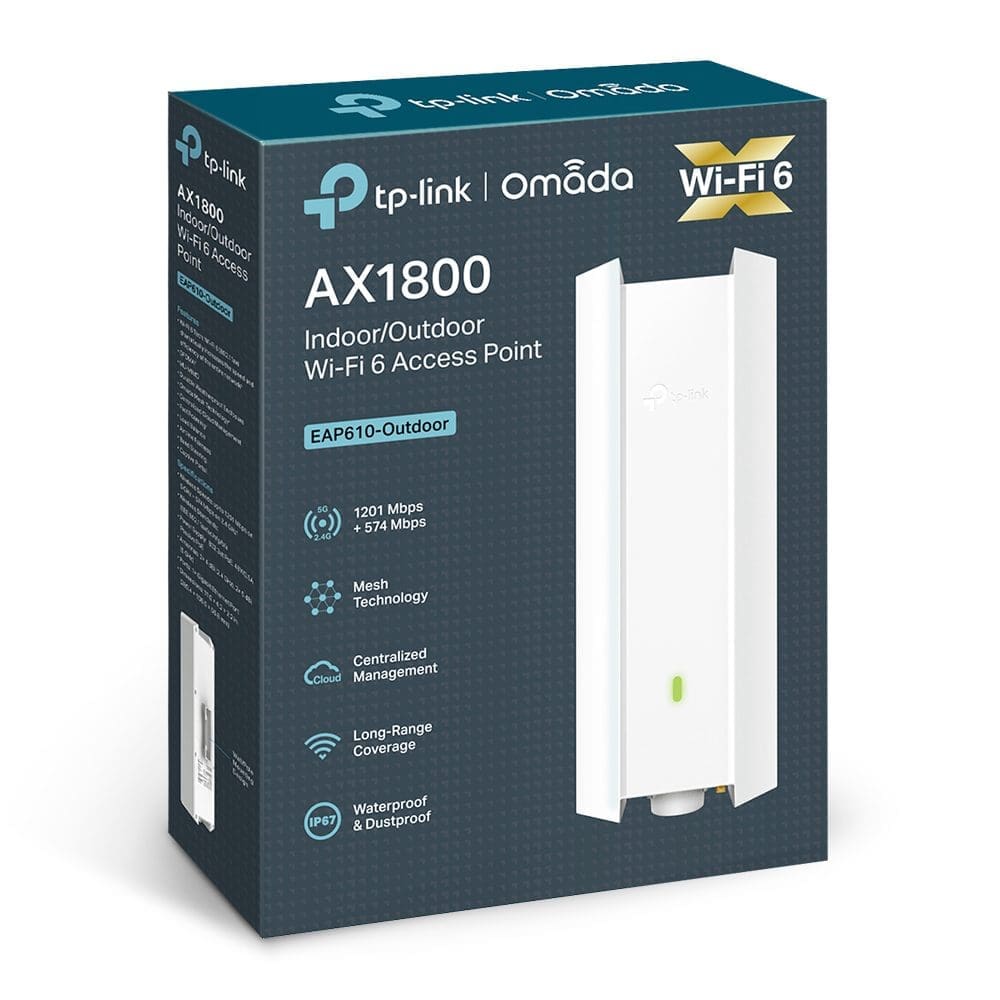

• TP-Link EAP610-Outdoor Access Point
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Waterproof Kits & Antennas
• Installation Guide
